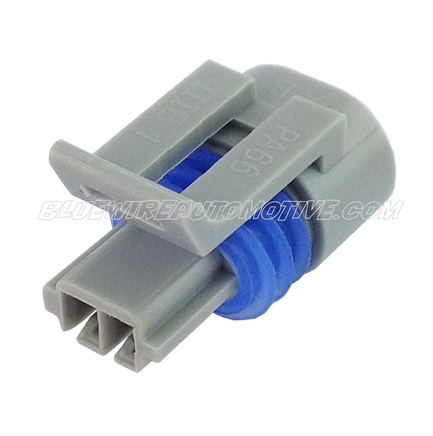

INTAKE AIR TEMP SENSOR IAT CONNECTOR PLUG-2pin - BWAP0020

This is our GM LS1intake air temperature sensor IAT engine harness connector plug for 1994 to 2002 LT1, LT4, LS1 LS2 wiring harness.

Connectors include all terminal pins.

Great for those that are replacing worn or damaged plug connectors.

Description:
Metri-Pack 150.2 pull to seat 2 pin sealed female connector kit

Terminals suit cable sizes between 0.75 & 1.0mm2 (18-16 AWG)

Cable seal suits cables with an outside diameter between 1.86mm & 2.4mm

Rated current carrying capacity of 15 amps

Operating temperature range between -40°C to 125°C

Pins:: 2

Gauge:: 22-18

Dimensions:: 27.1 mm L x 16 mm W x 18.4 mm H

Part No :: BWAP0020
