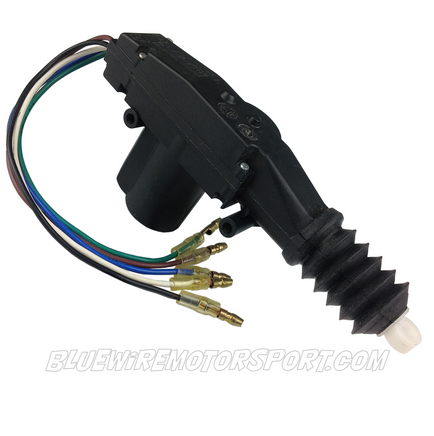

UNIVERSAL 5 WIRE DOOR MOTOR/ACTUATOR-2kg/4kg

BLUEWIRE AUTOMOTIVE

$22.00
SKU: BWAPWLKM5000

The ultra slim gun-shape design allows the standard type of actuator to fit into the most restricted of spaces while still delivering a consistent 8 pounds of push and pull.

The Five-wire design with built in micro-switches allows the actuators to "talk" to one another and activate simultaneously, resulting in true "central-locking" type operation.

The high-impact resin case is sonically sealed and riveted for a smooth, quiet operation and an extended life.

Used in Actuator Motor replacements for all universal central locking kits or if you need to supply as a Remote Keyless entry to cars that don't have a driver's door eg: Nissan, Hyundai, Mazda, Subaru (Only in some models)

  • Electro-Mechanical activation
  • Operation of a slave actuator
Full complement of hardware:
1 x 5 Wire Black Motor
1 x Metal bracket
1 x Superior 2 point fixing clamp
3 x Slot/Cross head screws,
1 x Control Rod
1 x Speed Screws

Features
Voltage: 12v
Amp absorption: 4.5amp
Temp range: 0-120 degrees
Pull/Push Force: 4kg
High Impact Resin Case

Actuator
Wide: 2.75”
Length: 5.5”
Height: 1”
Mounting Bar
Wide: .5”
Length: 12.0”
Height: 1/8”

Download PDF Wire Diagrams on Tech-Support Page
