6-Pin Fuel Tank Bulkhead Connector Kit – Aluminium Fitting Ring & Viton O-Ring

Upgrade your fuel tank electrical connections with our Bluewire Automotive 6-Pin Fuel Tank Bulkhead Connector Kit, designed for custom fuel systems, fuel pump wiring and automotive fuel tank installations.

This complete bulkhead connector kit provides a practical solution for routing electrical wiring through a fuel tank wall while maintaining a secure, sealed connection when correctly installed.

Featuring a quality aluminium fitting ring, fuel-resistant Viton O-ring, stainless steel circlip and 6-pin electrical connectors, this kit is ideal for custom fuel tank builds, fuel pump installations and automotive restoration projects.

Whether you're building a performance street car, race car, hot rod or custom fuel system, our 6-pin bulkhead connector kit provides a professional solution for your fuel tank wiring requirements.

Key Features

• 6-Pin Bulkhead Connector: Designed for compatible fuel tank electrical connections.

• Aluminium Fitting Ring: Provides a durable mounting arrangement for the bulkhead connector.

• Viton O-Ring: Fuel-resistant sealing material designed for demanding automotive applications.

• Stainless Steel Circlip: Helps secure the connector assembly in position.

• 2.8mm Terminals: Suitable for compatible automotive electrical wiring.

• High Current Capability: Rated up to 30A at 85°C and 18A at 100°C, subject to the manufacturer's specified conditions.

• Complete Connector Kit: Includes mating connectors and terminals for installation.

• Custom Fuel System Applications: Ideal for compatible fuel pump and fuel tank wiring projects.

Product Specifications

Product Type: Fuel Tank Electrical Bulkhead Connector Kit
Connector Type: 6-Pin Bulkhead
Number of Pins: 6
Terminal Size: 2.8mm
Maximum Current Rating at 85°C: 30A
Maximum Current Rating at 100°C: 18A
Fitting Ring Material: Aluminium
Seal Material: Viton O-Ring
Retaining Circlip: Stainless Steel
Application: Fuel Tank Electrical Wiring
Part Number: BWAALY-141BK

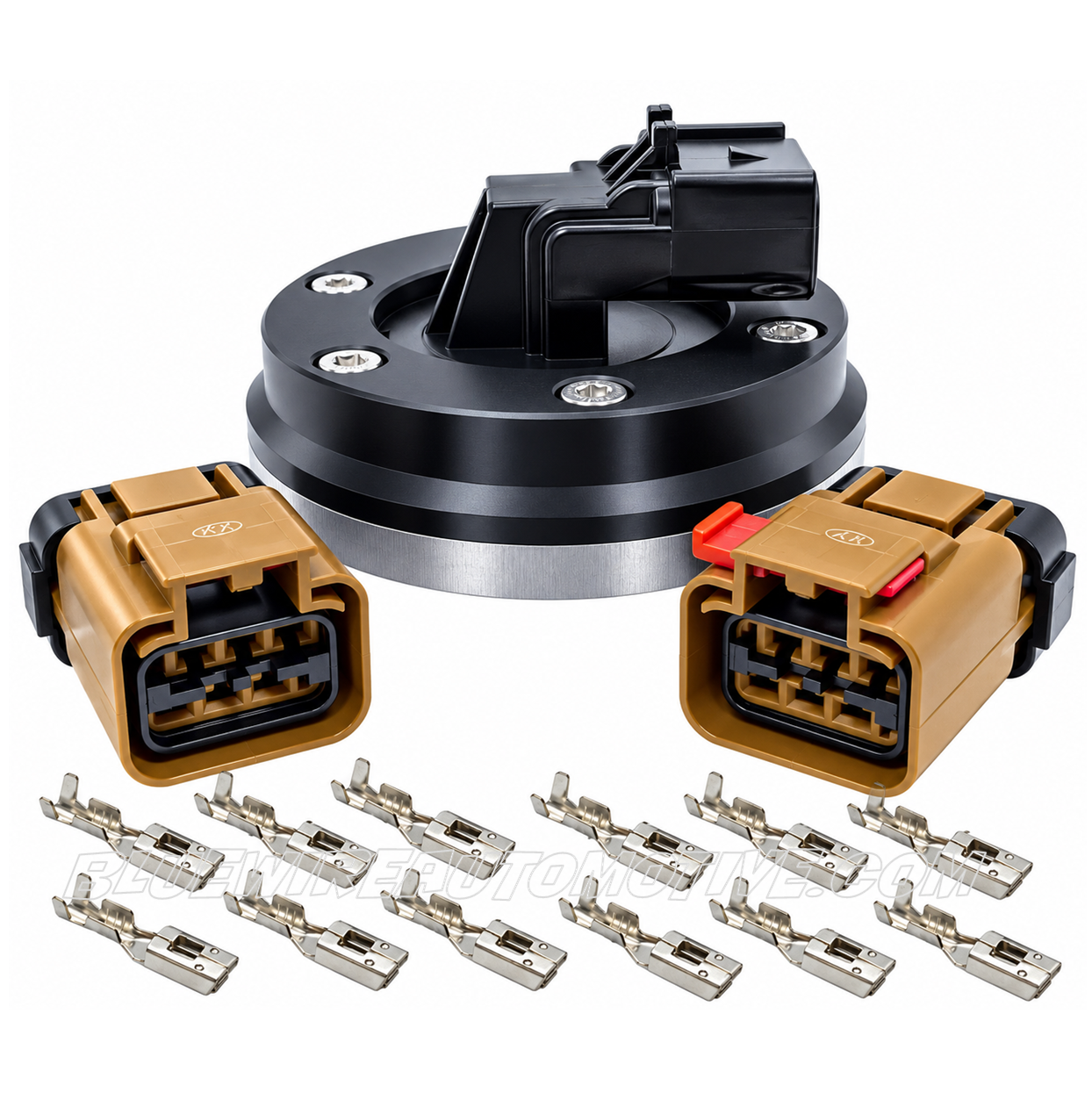

What's Included?

Your Bluewire Automotive 6-Pin Fuel Tank Bulkhead Connector Kit includes:

• 1 × Aluminium Fitting Ring

• 1 × Viton O-Ring

• 1 × Stainless Steel Circlip

• 1 × 6-Pin Bulkhead Connector

• 2 × Mating Electrical Connectors

• Connector Terminals

Suitable Applications

Ideal for compatible automotive fuel system installations, including:

• Custom Fuel Tank Wiring

• In-Tank Electric Fuel Pump Connections

• Fuel Pump Wiring Harnesses

• Performance and Motorsport Fuel Systems

• Hot Rods and Street Machines

• Classic Car Restoration Projects

• Custom Automotive Fuel Tank Builds

Important Installation & Safety Information

MUST BE INSTALLED BY A QUALIFIED TECHNICIAN.

This product is designed for specialist automotive fuel system applications where correct electrical connections and sealing are essential.

Before installation, confirm that the connector assembly, sealing components and terminals are suitable for the fuel type, operating environment and electrical load.

Fuel tank modifications and electrical installations must be carried out by a suitably qualified technician using appropriate safety procedures.

Incorrect installation may result in fuel leakage, electrical failure or fire hazards.

Why Choose Bluewire Automotive?

At Bluewire Automotive, we specialise in automotive wiring harnesses, electrical connectors and quality components for classic cars, performance vehicles, race cars, hot rods and custom builds.

Whether you're building a complete custom fuel system or upgrading your existing wiring, we have the electrical components to help get your project wired up.

Get your fuel tank wiring sorted with our Bluewire Automotive 6-Pin Fuel Tank Bulkhead Connector Kit!

Part No: BWAALY-141BK
