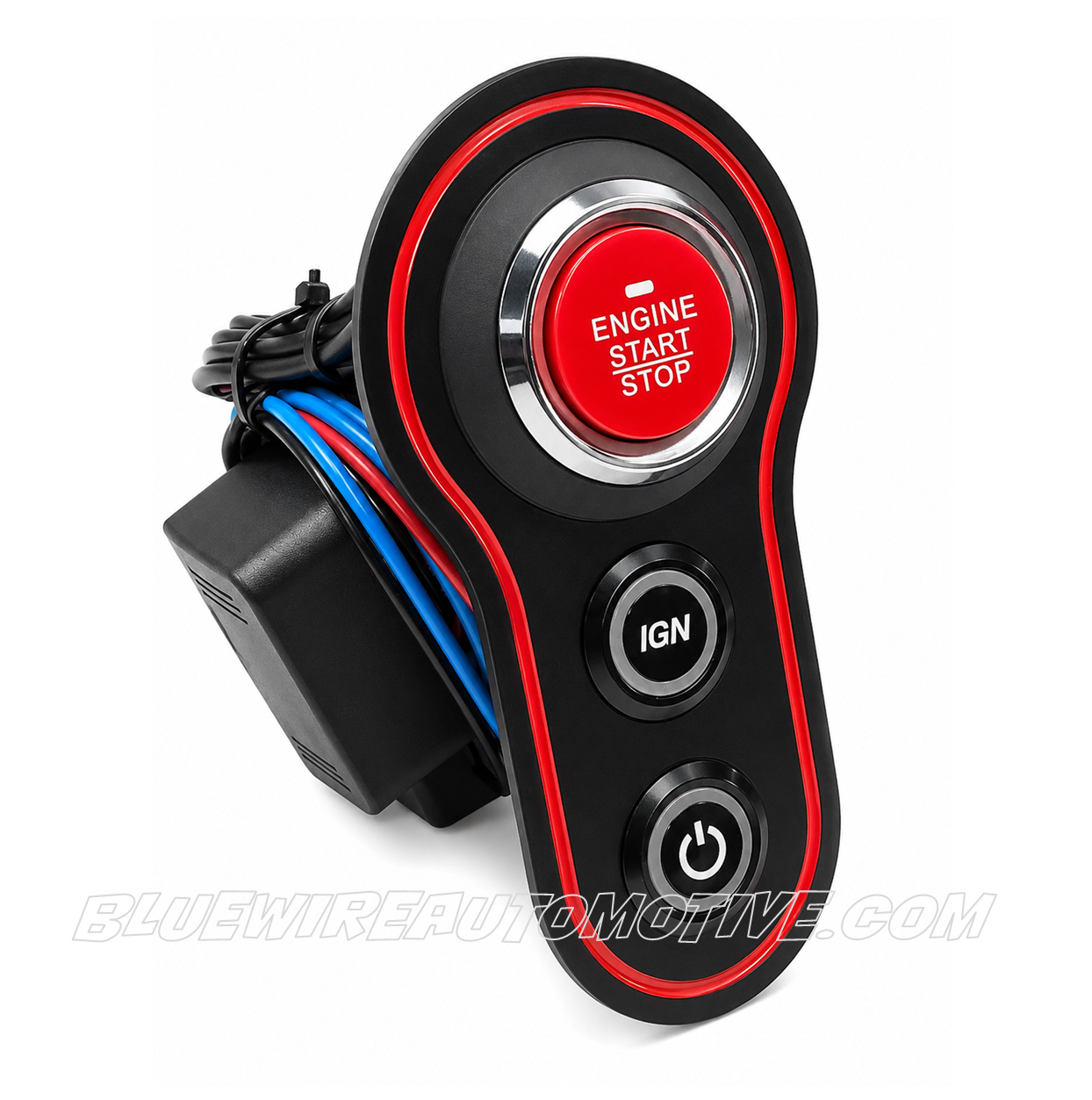

REDBACK KEYHOLE ENGINE START DASH SYSTEM 03
Our Redback serise Keyhole Engine Start Dash Panels with our Billet Buttons are great for any Hot Rod, Show Car or Street Car installations.
Can be used for top mount or side mounting on your dash or console.
Each switch offers a solid positive tactile feedback and even LED illumination.
Illumination can be wired so that it is active when button is pushed, at reset or when lights are on.
Pack Features:
1 x Black Key Hole panel with Red edging
1 x 22mm Black Power Solenoid Billet Button:: Red Led
1 x 22mm Black IGN Billet Button:: Red Led
2 x 22mm plug & play plugs
1 x Rotex Starter System:: Red/Chrome
Button Features:
1 x Thread Diameter :: 35mm
Button Features:
1 x Thread Diameter :: 35mm
2 x Thread Diameter :: 22mm
Length size :: 40mmSwitch rating :: 5A/250VAC
Contact Configuration :: 1NO 1NC
Operation Type :: Latching
Front Shape :: Flat
Lamp Type :: Ring Illuminated LED
Lamp Colour :: 1 x Red/Yellow & 1 x Blue/Green
Material :: Stainless Steel
Volt :: 12 DC
Amps :: 1.5amp
Panel Features :
1 x IGN Button Hole Size :: 22mm
Contact Configuration :: 1NO 1NC
Operation Type :: Latching
Front Shape :: Flat
Lamp Type :: Ring Illuminated LED
Lamp Colour :: 1 x Red/Yellow & 1 x Blue/Green
Material :: Stainless Steel
Volt :: 12 DC
Amps :: 1.5amp
Panel Features :
1 x IGN Button Hole Size :: 22mm
1 x Power Solenoid Button Hole Size :: 22mm
1 x Engine Start Button Hole Size :: 35mm
Length :: 145mm
Width Top:: 73mm
Length :: 145mm
Width Top:: 73mm
Width Bottom:: 53mm
Thickness :: 4mm
Material :: Brushed Aluminum
Part No:: BWARBKH-03
Thickness :: 4mm
Material :: Brushed Aluminum
Part No:: BWARBKH-03
These handsome and elegant buttons feature a sharp billet finish and high-quality L.E.D. illumination.
Used for:
Ignition System (On/Off)Power Solenoid (On/Off)
Engine Start: Starter Motor (On/Crank Momentary)
