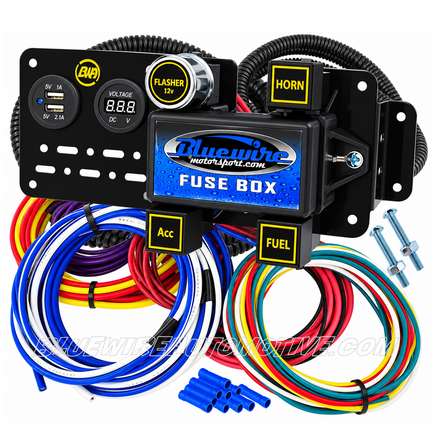

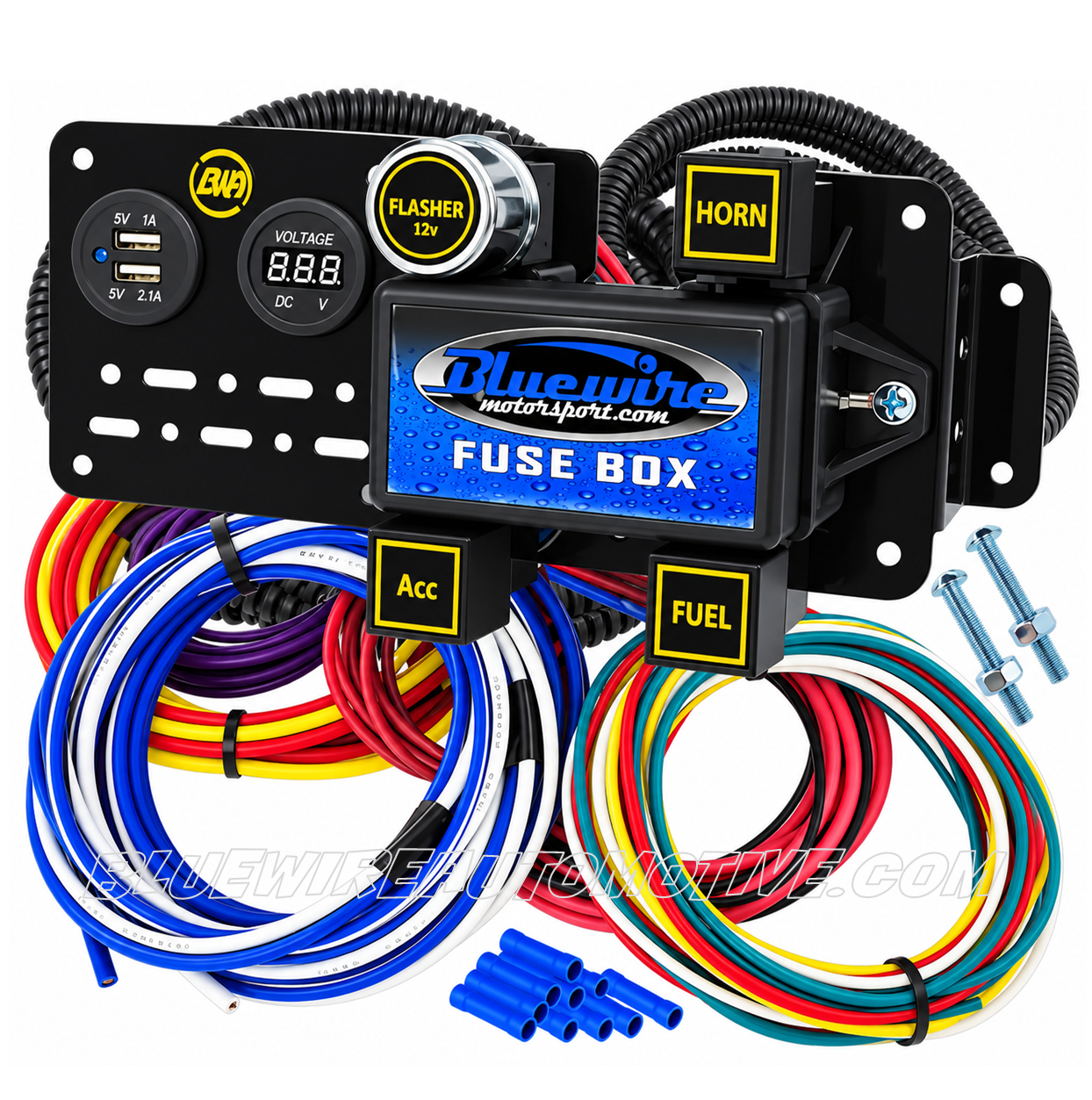

UNIVERSAL 12-CIRCUIT FUSE BLOCK SHORT HARNESS + PLUS - BWAH0001
Our 12-Circuit Short harness Plus & fuse block series offers an ultra small fuse block that can be mounted in any position including under the dash or seat!
If your factory Wire Harness is sill in good working order and just want to clean up your old fuse box set up with a new horn relay, flasher relay & new blade fuse box set up this is the kit you need & at half the price as a full wire harness.
Ideal for hot rods, race cars, and custom car installations.
Application: Universal Automobile
Wire & Standards: FLRY QBV AVSS UL CCC
Connector Material: Nylon and copper, ROHS
Part Number: BWAH0001
Fuse Block Size: L x 100mm - W x 850mm
Features:
Fuses :: 12
Circuits :: 12
Pre-wired Terminals :: 11
Horn Relay :: 1
Flasher Relay :: 1
Acc Relay :: 1
Fuel Relay :: 1
Fuse Cover :: 1
Spare Fuses :: 3
Volt Meter :: 1
USB Connections :: 2
Fuse Box installation bolts :: 2
Wire Shielding :: 2
Installation Instructions :: 1
Red - 6'gauge - Battery In - 2mtrs
Blue/White - 6'gauge - Spare Acc2 Circuit In - 2mtrs
Yellow - 6'gauge - Ignition In- 2mtrs
Red - 5'gauge - Brake Switch Out - 2mtrs
Green - 5'gauge - Hazard/Spare Out - 2mtrs
Brown - 5'gauge - Wiper Out - 2mtrs
Black - 5'gauge - Heater Out - 2mtrs
White - 5'gauge - Gauges Out - 2mtrs
Purple - 5'gauge - Indicator/Signal Out - 2mtrs
Grey - 5'gauge - Horn/Relay Out - 2mtrs
Yellow - 5'gauge - Spare Acc Circuit Out - 2mtrs
Blue - 6'gauge - Spare Acc1 Circuit Out - 2mtrs
Pink - 6'gauge - Ignition 1 Circuit Out - 2mtrs
