10-Pin Automotive In-Dash Wiring Connector Plug & Socket Kit

Our 10-Pin Automotive In-Dash Connector Kit is a practical solution for building, repairing or replacing electrical connections in automotive wiring systems.

Commonly used for dashboard rewiring, gauges, instrument clusters, switches and custom wiring installations, these connectors are also ideal for replacing damaged or worn OEM-style wiring plugs.

The male and female connector housings interlock securely and are supplied with the required male and female locking spade terminals, giving you everything needed to create a neat, removable wiring connection.

Perfect for classic cars, restorations, Hot Rods, Street Machines, race cars and custom automotive wiring projects.

Features

• Connector Type: Male & Female Plug/Socket

• Number of Pins: 10 Pin

• Male Terminals: 10

• Female Terminals: 10

• Interlocking connector housings

• Locking male and female spade terminals

• Suitable for automotive dashboard and gauge wiring

• Great for new wiring installations or replacement of damaged connectors

• Allows wiring components to be easily disconnected for servicing or removal

Specifications

Wire Size: 20–14 AWG (0.5–2.0mm²)
Temperature Range: -30°C to +105°C
Maximum Current: 20A with 14 AWG cable / 4A with 20 AWG cable
Male Pins: 10
Female Pins: 10

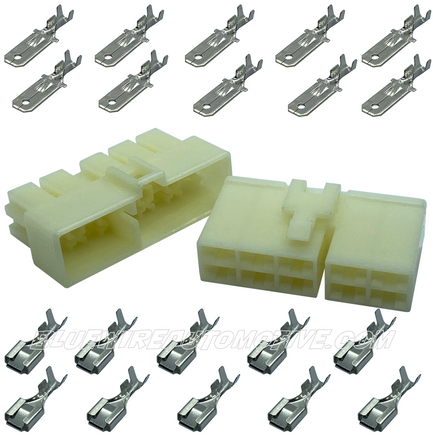

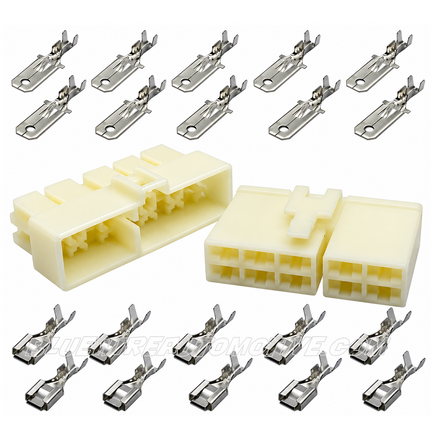

Kit Includes

• 1 × 10-Pin Male Connector Housing

• 1 × 10-Pin Female Connector Housing

• 10 × Male Locking Spade Terminals

• 10 × Female Locking Spade Terminals

Ideal For

Automotive gauges, dash clusters, switches, custom dashboards, wiring harnesses, restorations, replacement OEM-style connections and general automotive electrical projects.

Other Sizes Available

Our range of interlocking in-dash connectors is also available in:

1-Pin, 2-Pin, 3-Pin, 4-Pin, 6-Pin, 8-Pin, 10-Pin, 12-Pin and 21-Pin configurations.

Please Note: Always select the correct terminal and wire size for the electrical load of your application.
