DT6 OEM DEUTSCH MOTORSPORT CONNECTOR PLUG MALE & FEMALE 6PN-BWACPS-128

This is our 6pin OEM Deutsch waterproof connector plug with use to many universal ECU & fuel injection connections.

 Our OEM Deutsch connectors are suitable for many different applications including automotive & marine, harsh environment and heavy equipment applications where reliable, waterproof connections need to be made quickly & easily.

 Also are excellent for marine use due to superior corrosion protection.

Specifications:
Integral connector latch
Rugged thermoplastic housing
Operating Temperature: -55C to +125C
Seals: Silicone
Accepts AWG 14 wire (1.0mm+2)
Crimp contacts with option of gold or nickel, solid or stamped
Current rating: 13amps all contacts
Hand insurable / removable contacts
1500V, 20G @ 10 to 2000 Hz

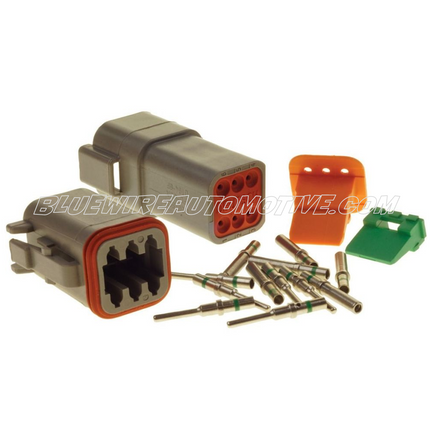

Kit Includes:
1 x 6-way receptacle + wedge lock
1 x 6-way plug + wedge lock
6 x Male F Contacts
6x Female F Contacts
Part No: BWACPS-128
