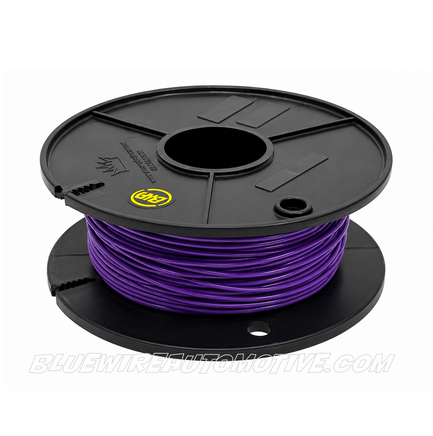

VIOLET-TEFZEL 22# SPEC WIRE-5M
Bluewire Automotive is renowned for supplying a large range of automotive cable for Australian automotive car builders with professional MIL-Spec wire for motorsport, automotive and aerospace wiring harnesses.
Genuine 22# Tefzel (XLETFE) wire manufactured for demanding electrical applications where low weight, reliability, heat resistance and compact harness construction are critical.
Featuring a tinned copper conductor with Crosslinked Modified ETFE (Tefzel/XLETFE) insulation, this wire is an excellent choice for professional motorsport wiring harnesses, ECU looms, sensor circuits and data acquisition systems.
Compared with conventional automotive wire, its thin-wall insulation helps produce smaller, lighter and more professional wiring harnesses while providing excellent resistance to heat and demanding operating environments.
Specifications
| Specification | Details |
|---|---|
| MIL-Spec | M22759/32 |
| Part Number | BWAM22759/22 |
| Wire Size | 22 AWG |
| Colour | Violet |
| Conductor | Tinned Copper |
| Stranding | 7/30 |
| Conductor Diameter | 0.30 mm |
| Overall Diameter (OD) | 1.02 mm |
| Insulation | Crosslinked Modified ETFE (Tefzel/XLETFE) |
| Voltage Rating | 600 V |
| Temperature Range | -55°C to +150°C |
| Current Rating | 7 A – single wire at 30°C ambient |
| Weight | Approx. 5 g/m |
| Sale Length | 5 metres |
Ideal Applications
- Motorsport wiring harness builds
- ECU and engine management looms
- Sensor and signal wiring
- Data acquisition systems
- CAN and low-current control circuits where appropriate
- Race car and performance vehicle wiring
- Aerospace and aviation wiring
- Lightweight electrical harness construction
Why Use Tefzel Wire?
Lightweight & Compact
Thin-wall XLETFE insulation helps reduce harness diameter and overall weight compared with many conventional automotive wires.
High Temperature Capability
Rated for operation from -55°C to +150°C, making it suitable for demanding vehicle and aerospace environments.
Professional Harness Construction
The small 1.02 mm overall diameter makes 22 AWG particularly useful when building compact multi-wire harnesses and densely populated ECU connectors.
Tinned Copper Conductor
Provides excellent electrical performance and is well suited to professional crimped wiring harness construction.
MIL-Spec Construction
A proven wire specification widely suited to high-performance electrical systems where reliability and weight matter.
Supplied in 5 Meter Lengths
Quantity 1 = 5 meters of wire.
Perfect for professional harness builders, motorsport workshops, race teams and enthusiasts looking for high-quality wire for custom electrical and ECU harness projects.
