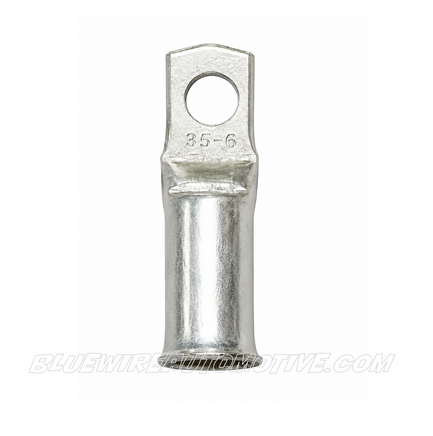

35MM² NARROW PALM TERMANAL LUGS 1/2B&S 35-6 BWASCB35-6-N

Our 35mm² Narrow Palm Cable Lug is manufactured from fully annealed 99.95% pure high-conductivity electrolytic copper, providing excellent electrical performance and a strong, reliable cable termination.

The lug is electro-tin plated with high-purity tin for superior corrosion resistance, making it ideal for demanding automotive, motorsport, marine and industrial electrical applications.

The narrow 15mm palm design is particularly useful where installation space is limited, while the bell-mouth barrel helps guide the cable into the lug and reduces the chance of conductor damage during installation.

An integrated inspection window allows you to visually confirm that the cable has been fully inserted before crimping.

Features

• Manufactured from 99.95% pure electrolytic copper
• High electrical conductivity – 99.7% IACS
• Maximum oxygen content of 30ppm
• Fully annealed for reliable crimping
• 5–10 micron, 99.9% pure tin plating
• Excellent corrosion resistance
• Bell-mouth barrel for easier cable insertion
• Inspection window for checking cable position before crimping
• Narrow palm design for confined installation areas
• Operating temperature range of -55°C to +155°C
• Conforms to AS/NZS 4325 Part 1
• Suitable for automotive battery and high-current cable applications

Specifications

Cable Size: 35mm²
Battery Cable Gauge: 1/2 B&S
Material: Copper
Finish: Electro-Tin Plated
Barrel Type: Bell Mouth
Barrel Length: 21mm
Inner Dimension: 8.4mm
Overall Length: 41mm
Palm Thickness: 3.0mm
Palm Width: 15mm
Palm Length: 15mm
Stud / Hole Size: 6mm
Operating Temperature: -55°C to +155°C
Standard: AS/NZS 4325 Part 1

Ideal For

Perfect for battery cables, starter motor cables, alternator wiring, earth cables, power distribution systems, motorsport wiring and custom automotive electrical installations.

For the best electrical and mechanical connection, always use the correct heavy-duty cable lug crimping tool matched to your cable and terminal size.
