5 METER BLACK NEGATIVE BATTERY CABLE-RING TERMINAL-0B&S-12v~24v

Our Bluewire Automotive Heavy Duty Black Battery Cable Kit is designed for high-current automotive electrical systems where a reliable, low-resistance battery-to-engine earth connection is essential.

With a 246 Amp rating and heavy-duty copper construction, this cable is ideal for Street Cars, Hot Rods, Race Cars, Muscle Cars, Battery Relocation Systems and Custom Builds operating on 12V or 24V electrical systems.

The generous 5-meter cable length makes it particularly suitable for vehicles with the battery relocated to the boot or rear of the vehicle.

Ideal for Performance Ignition Systems

A poor battery earth or ground can contribute to starting, charging and ignition-system problems.

For performance ignition installations, including systems such as ICE Ignition and MSD Ignition, a high-quality battery and engine ground is particularly important. Always follow the ignition-system manufacturer's installation instructions and grounding requirements.

Where specified by the manufacturer, the battery negative cable should run directly from the battery negative terminal to the engine block as one continuous cable, helping provide a dependable low-resistance ground path.

Ground wires from ignition controls, boosters and other sensitive electronic equipment should also be installed in accordance with the equipment manufacturer's instructions.

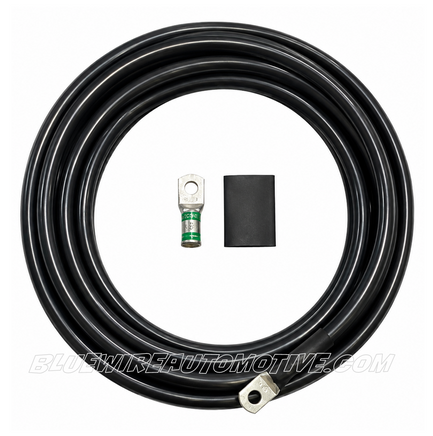

Kit Includes

• 1 × 5 Meter Black Heavy Duty Negative Battery Cable
• 1 × Battery Terminal Fitting
• 1 × 12mm Negative Ring Terminal
• 1 × Black Heat Shrink

Battery Cable Specifications

Colour: Black
Application: Negative / Earth Battery Cable
Cable Length: 5 Metres
Current Rating: 246 Amps
Operating Systems: 12V & 24V
Stranding: 608/0.32
Insulation Thickness: 1.7mm
Copper Conductor Diameter: 12.7mm
Overall, Cable Diameter: 14.4mm
Ring Terminal Size: 8mm
Part No: BWA00393R

Perfect for Battery Relocation

This heavy-duty cable is an excellent choice when relocating your battery to the boot, rear compartment, Ute tray or other custom location, providing enough length to run a continuous negative cable back to the engine.

Suitable For

Street Cars • Hot Rods • Race Cars • Burnout Cars • Classic Cars • Muscle Cars • Motorsport Vehicles • Battery Relocation Systems • Custom Automotive Wiring

For the best connection, always use the correct heavy-duty battery cable crimping tool and protect all completed connections with suitable heat shrink.

BLUEWIRE AUTOMOTIVE – Professional Automotive Wiring Solutions
