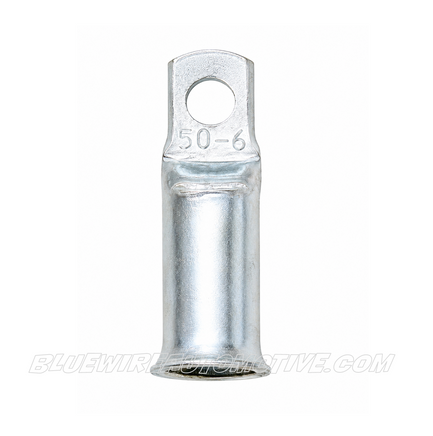

50MM² NARROW PALM TERMANAL LUGS 0B&S 50/60-BWASCB50-6-N

Our 50mm² Narrow Palm Copper Cable Lug is a high-quality, heavy-duty termination designed for automotive, motorsport, marine and electrical applications where a compact palm width is required.

Manufactured from fully annealed 99.95% pure high-conductivity electrolytic copper, the lug provides excellent electrical performance and reliable crimping. Each lug is electro-tin plated to provide superior corrosion resistance and long-term protection in demanding environments.

The bell-mouth barrel makes cable insertion easier and helps reduce stress on the cable strands during crimping. An inspection window allows you to confirm that the cable has been fully inserted before completing the crimp.

Features

• Electrical conductivity: 99.7% IACS
• Oxygen content: 30ppm maximum
• Fully annealed for reliable crimping
• Electro-tin plated for excellent corrosion resistance
• 5–10 micron, 99.9% pure tin plating
• Operating temperature: -55°C to +155°C
• Conforms to AS/NZS 4325 Part 1
• Bell-mouth barrel
• Inspection window for correct cable insertion
• Narrow palm design for tighter installation areas
• Suitable for automotive battery and high-current cable applications

Specifications

Cable Size: 50mm²
Battery Cable Size: 0 B&S
Material: Copper
Barrel Type: Bell Mouth
Barrel Length: 21mm
Inner Diameter: 8.4mm
Overall Length: 41mm
Palm Thickness: 3.2mm
Palm Width: 11mm
Palm Length: 15mm
Stud/Hole Size: 6mm
AWG Size: Not Applicable
Operating Temperature: -55°C to +155°C

Ideal For

Perfect for battery cables, starter motor cables, alternator wiring, earth cables, power distribution systems, race cars, street machines, hot rods, 4WDs, marine installations and custom automotive wiring projects.

For the best electrical connection, always use the correct size professional cable lug crimping tool to achieve a secure, low-resistance termination.
