80AMP CONNECTOR PLUG - 2pin
BLUEWIRE AUTOMOTIVE
$15.00
Our range of in Hi Amp connectors is commonly used in automotive applications such rewire battery or any hi amp installations.
These .312 (8mm) Series connectors are polarised to prevent incorrect mating Positive locking latch automatically engages at mating for the single circuit connector Standard connector used in fusible links
Tin plated contacts are easily snapped into the housings by hand
Applicable terminal wire range is 1.3 to 2.0mm squared
The Hi Amp housings interlock & come in 1pin, 2pin sets.

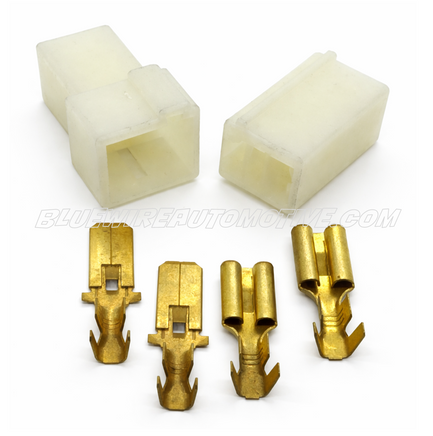

Each comes with plug, socket, and male and female locking spade lugs.
Crimp Terminals Accept: 20-14awg wire (0.5-2.0mm^2)
Temp Range: -30 - 105degC
Max Current: 80A
