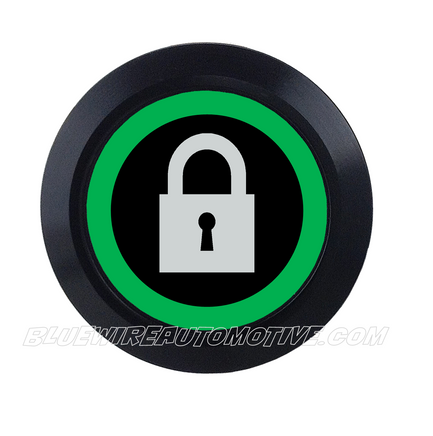

BLACK SERIES BILLET BUTTON-MOMENTARY-LOCK-19mm

BLUEWIRE AUTOMOTIVE

$44.00
SKU: BWASWBS19LK-B

Our black series 19mm size  billet buttons with illuminating led ring switches with our plug & play wire harnesses are the classy way to go when your wiring up your power windows in your Hot Rod, Street Car or Race Car.

These black series buttons have etched engraved logos or scripts in the center of the button to identify what you are switching On or Off.

Each switch offers a solid positive tactile feedback and even LED illumination.

Ideal for thermo fans, fuel pumps, water pumps, power windows, power door locks, power trunks, sunroofs, linear actuators, air bags, or anything you can think of that needs a switch.


These handsome & elegant black switches feature a sharp billet finish and high-quality L.E.D. illumination.

Illumination led can be wired so that it is active when the or turned on with your key ignition, as the button is momentary pushed this sends out a low voltage negative trigger to your hi-amp relays (relays not included).

Our buttons are dust proof & water splash resistant so can be used in off road 4x4 use & marine use eg: Boats & Jet Skis

Used For :: Central Locking
Series :: Black Series
Engraved Logo :: Lock
Engraved Written Script :: Nill
Thread Diameter :: 19mm
Face size :: 22mm
Length size :: 35.8mm
Switch rating :: 5A/250VAC
Contact Configuration :: 1NO 1NC
Operation Type :: Momentary
Front Shape :: Flat
Lamp Type :: Ring Illuminated LED
Lamp Colour :: Blue, Green, Red, Orange, Yellow, White
Fitting Washer :: Rubber Seal
Material :: Anodised Aluminium
Plug Harness :: Not Included

Part No :: BWASWBS19LK-B
Part No :: BWASWBS19LK-G
Part No :: BWASWBS19LK-R
Part No :: BWASWBS19LK-W
Part No :: BWASWBS19LK-O
Part No :: BWASWBS19LK-Y


BUTTON ACCESSORIES





 Download PDF Installation Gide: TECH SUPPORT
