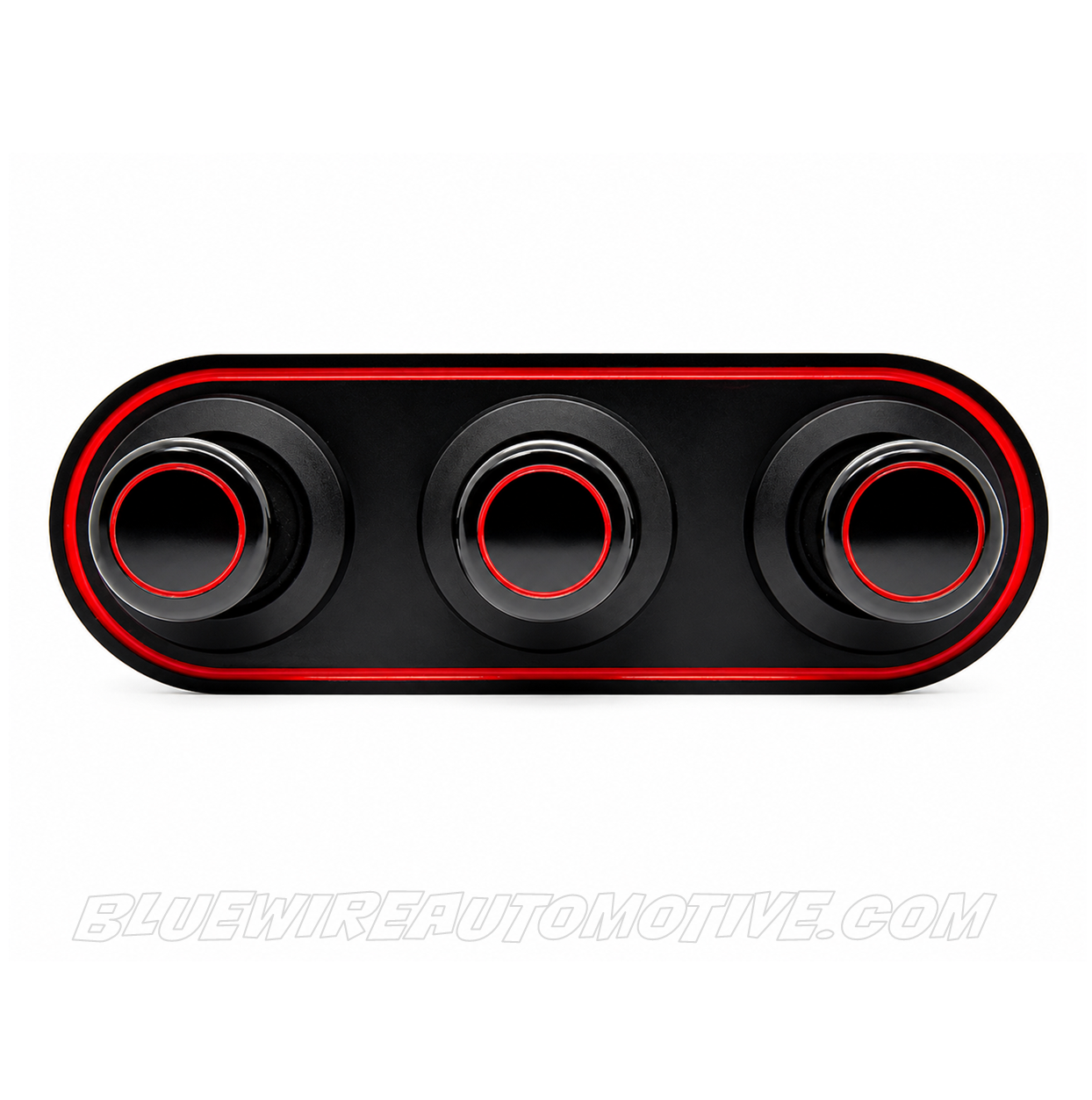

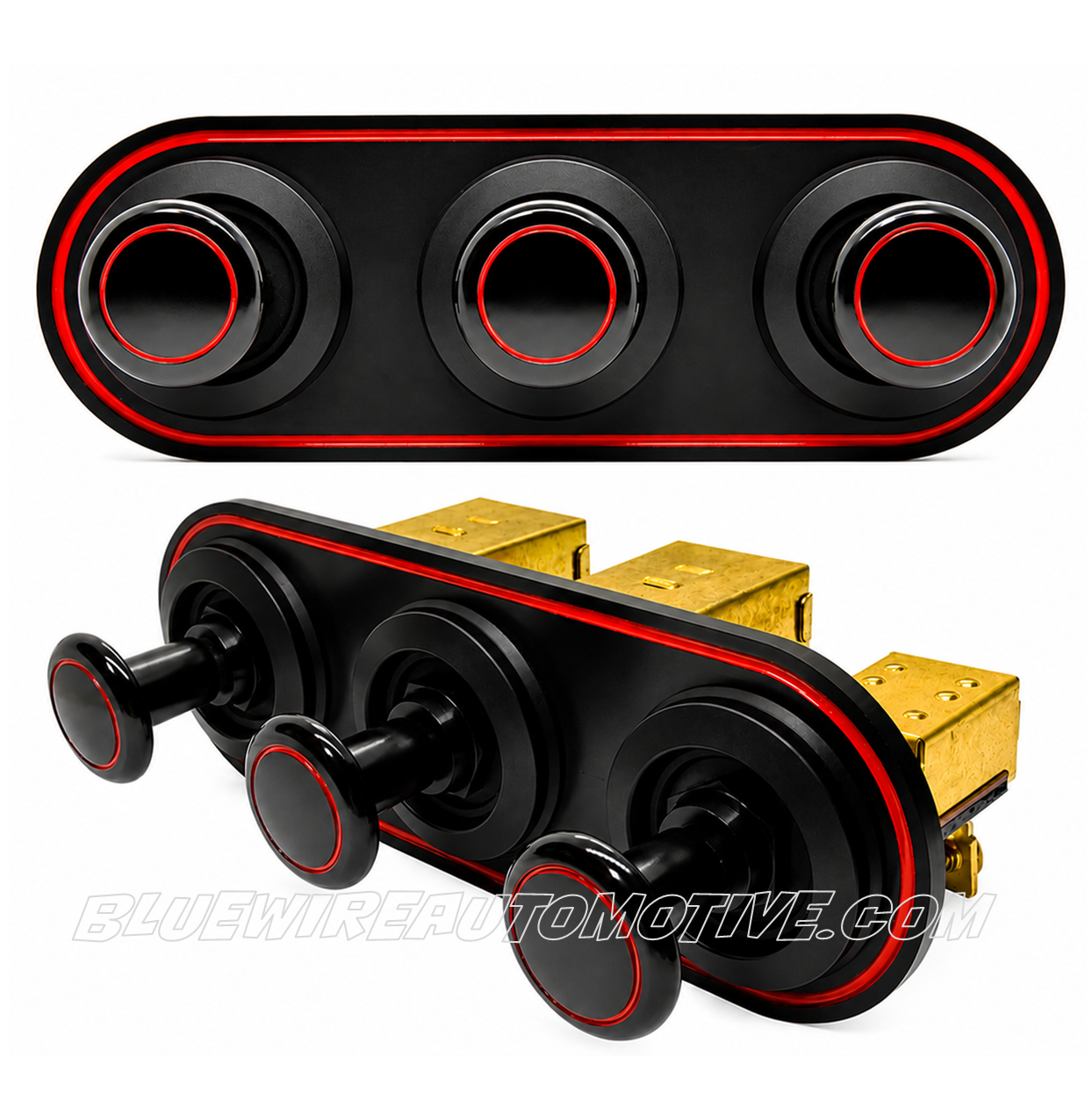

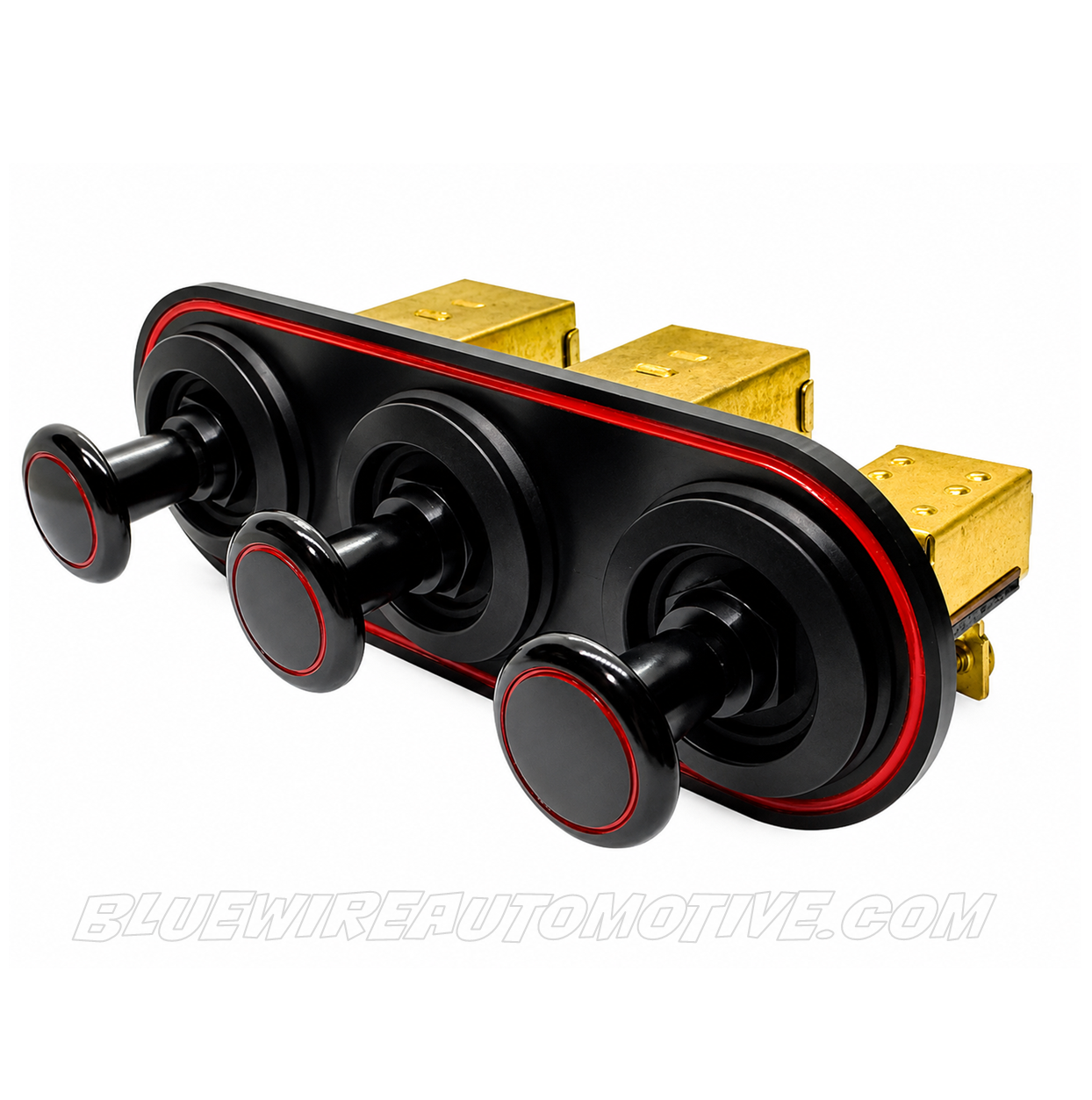

BLACK SERIES CLASSIC REDBACK SWITCH KIT-3 SWITCH-BWASWBSRBK03

Name: BLACK SERIES CLASSIC REDBACK SWITCH KIT-3 SWITCH-BWASWBSRBK03
Brand: BLUEWIRE AUTOMOTIVE
Price: 329.0 AUD
Availability: InStock

$329.00

Our Black Redback series switch kits offer multi speed settings to handle Headlights, fan & wiper motors on the market today. Multi speed operation is supported by 4 screws in terminals that can handle the roughest vibrations guaranteed to last forever!

Each switch includes a high impact billet knob and mounting base.

Off/On/On Push/Pull Switch (Automotive & Marine)

DPDT, brass construction, Black & Red knob

Amperage rating: 15A at 12V, 7.5A at 24V

Mounting opening: 10mm dia.

Wiper Switch Features:
Knob: Billet
Knob Colour: Black/Red
Terminals: 4
Voltage: 6V, 12V
Positions: 2
Mounting: Bezel Nut
Mounting Depth: (25mm)
Shaft Diameter: (9.7mm)
Knob Head Diameter: (21mm) x (20mm)

Fan Switch Features:
Knob: Billet
Knob Colour: Black/Red
Terminals: 2
Voltage: 6V, 12V
Positions: 1
Mounting: Bezel Nut
Mounting Depth: (25mm)
Shaft Diameter: (9.7mm)

Headlight Switch Features:
Knob: Billet
Knob Colour: Black/Red
Terminals: 4
Voltage: 6V, 12V
Positions: 2 - Parklight-Headlight
Mounting: Bezel Nut
Mounting Depth: (25mm)
Shaft Diameter: (9.7mm)

Panel & Knob Features:

Colour: Black/Red

Hole Size: 5mm
Knob Size: 20mm
Bottom Width Size: 11mm
Face Width Size: 25mm
Base Thickness: 4mm
Material: Aluminium
Panel Size Features: Lx145mm Wx50mm

Part No: BWASWBSRBK03

ATT: CAN BE FITTED BY ANYONE WITH EASY FITTING, BUT BEST IS FITTED BY A PROFESSIONAL AUTO REPAIRER.
