BLACK SERIES PILOT LIGHT SIGNAL-DIFF LOCK-AMBER-14mm
BLUEWIRE AUTOMOTIVE
Add a professional finishing touch to your dashboard, switch panel or custom interior with our Black Series 4x4 Diff Lock LED Pilot Light.
Designed for automotive applications, this compact 12V LED indicator light features an illuminated Diff Lock symbol, making it ideal for clearly identifying when your vehicle's differential lock is activated or for use as a warning/status indicator within a suitable circuit.
With its black metal body, flat face and amber LED illumination, it provides a clean, modern appearance that works particularly well in custom dashboards and switch panels.
Ideal for 4WDs, Street Cars, Race Cars, Show Cars, Hot Rods, Street Machines and custom automotive builds.
Key Features

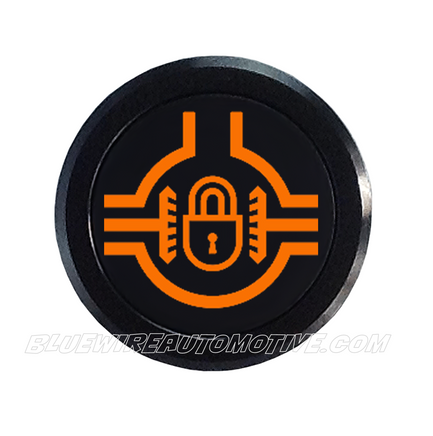

- 4x4 Diff Lock symbol
- Amber LED illumination
- Black Series design
- Sleek flat-face profile
- Durable metal body
- Compact 14mm panel mounting
- Supplied with rubber sealing washer

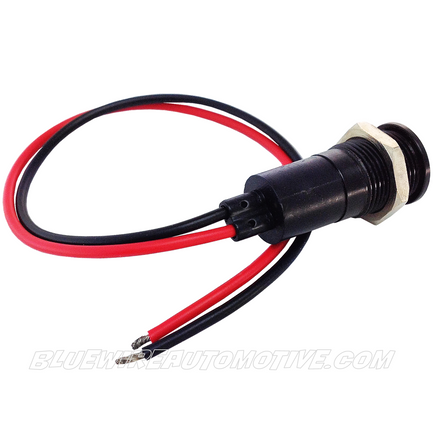

- Pre-wired with 150mm leads
- AWG18 PVC insulated wiring
- PVC wiring rated to 90°C
- Long-life LED – rated up to 100,000 hours
- Designed for 12V DC automotive systems
- Easy to install into dashboards and custom panels
Specifications
| Specification | Details |
|---|---|
| Series | Black Series |
| Symbol / Logo | 4x4 Diff Lock |
| Written Script | None |
| LED Colour | Amber |
| Operating Voltage | 12V DC |
| Lamp Type | Illuminated LED |
| Front Shape | Flat |
| Mounting Hole | 14mm |
| Thread Diameter | 14mm |
| Face Diameter | 15mm |
| Overall Length | 35.8mm |
| Wire Length | 150mm |
| Number of Wires | 2 |
| Wire Type | AWG18 PVC |
| Wire Temperature Rating | 90°C |
| LED Service Life | Up to 100,000 hours |
| Seal | Rubber sealing washer |
Easy Panel Installation
Installation is quick and straightforward. Simply drill or prepare a 14mm mounting hole, insert the pilot light through the panel and secure it in position.
The compact design makes it ideal for installing alongside switches, gauges and other warning lights where dashboard space is limited.
Ideal for Custom 4WD Dashboards
Whether you're building a dedicated off-road vehicle or simply upgrading your factory dashboard, the Black Series Diff Lock LED Pilot Light provides a clear visual indication with a professional OEM-style appearance.
Compact. Easy to install. Built for automotive applications.
