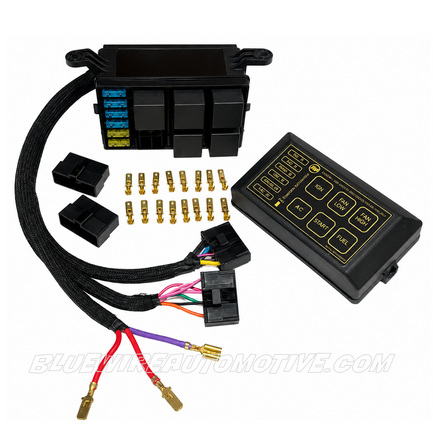

ENGINE BAY MOUNTED RELAY & FUSE BOX KIT PRE-WIRED WITH PLUGS & TERMINALS

BLUEWIRE AUTOMOTIVE

$99.00
SKU: BWAFBEM01-02

Clean up your engine bay wiring without the expense of replacing your complete wiring harness with our prewired Engine Bay Relay & Fuse Block Kit.

Designed as a compact and professional solution for Hot Rods, Street Cars, Race Cars and custom vehicle builds, this ultra-compact relay and fuse block can be mounted in a variety of locations, including under the dash or in the engine bay.

If your existing factory wiring harness is still in good working condition but your old fuse and relay setup is looking tired, messy or outdated, this kit is an ideal way to upgrade to a modern blade fuse and relay system without installing a complete new wiring harness.

The sturdy construction makes it suitable for a wide range of automotive and motorsport electrical applications. It can also be used in trailers, boats, custom electrical systems and other 12V installations.

Features

  • Compact relay and blade fuse block design
  • Ideal for cleaning up older engine bay wiring
  • Cost-effective alternative to replacing a complete wiring harness
  • Suitable for under-dash or engine bay installation
  • Uses standard ATC / ATO medium-size blade fuses
  • Supplied with blade fuse crimp terminals
  • Supplied with relay crimp terminals
  • Suitable for 12V and 24V electrical systems
  • Maximum operating voltage: 32V
  • Current range: 1A–40A
  • Durable plastic and metal construction
  • Ideal for Hot Rods, Street Cars, Race Cars and custom builds
  • Suitable for automotive, motorsport, trailer and marine applications

Specifications

Fuse Type: ATC / ATO Medium Blade Fuse
Voltage: 12V / 24V
Maximum Voltage: 32V
Current Range: 1A–40A
Colour: Black
Material: Plastic & Metal
Mounting Hole Diameter: Approx. 6.5mm
Distance Between Mounting Holes: Approx. 135mm

Modernise Your Engine Bay Wiring

There's no need to replace a perfectly good factory wiring harness just to improve your fuse and relay setup. This compact kit provides a neat, modern solution for relocating or upgrading your engine bay fuse and relay centre, helping give your wiring installation a cleaner and more professional finish.

A great upgrade for restorations, modified classics, Hot Rods, Street Cars and Motorsport builds.
