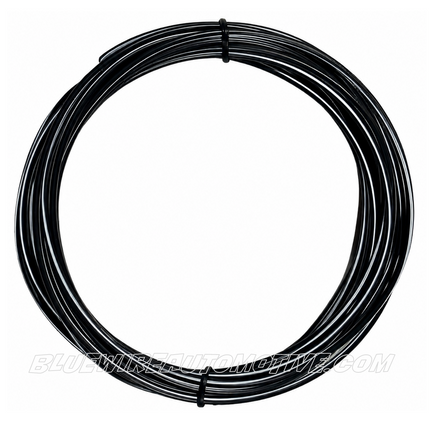

FLRY SINGLE CORE 5v REFERENCE ECU WIRE-BLACK/WHITE-1.5mm²-5mtrs

Bluewire Automotive is renowned for supplying a large range of automotive cable for Australian automotive car builders.

FLRY are primary wires that conform to automotive manufacturer and ISO 6722 specifications. We extrude a range of cable that suits all automotive, recreational, transport & heavy haulage markets.

The 5V reference wire is a regulated voltage line that supplies a consistent 5 volts to various sensors and components in electronic systems. This reference voltage is essential for the proper functioning of devices such as engine management sensors, which monitor parameters like temperature, pressure, and position. The stability of this voltage is vital for accurate readings and reliable operation of the system.

Short to Ground: One of the most common problems with the 5V reference wire is a short to ground, which can cause the ECM to enter a "limp" mode, drastically reducing engine power. Diagnosing this issue involves checking the wiring and connections for any faults.

Specifications:
Wire: FLRY-B
Cores: 1
Cable Dia: 1.5mm²
Length (meters): 5mtrs
Colour: Black/White
Outer Dia: 1.80 mm Min./max.
Temperature Conditions: -40 to 85°C
Premium quality with 99.9% copper content
Rated voltage: U ~ = 50 V, U- = 60 V
PVC external sheath
Free of silicone, cadmium and lead
