SINGLE CHANNEL HALL EFFECT SENSOR-BWANJK5002C

This is our Single Channel Hall Effect switch sensor with 3-Wires & Normally Open + Magne

Supply voltage 5-30VDC
Detection distance 10mm (effective detection distance 0-10mm)
Load current 150MA
Output form NPN three lines
Output state normally open
Detect objects metal material
Product Material Metal parts: Copper plastic components: PBT
External leads 1.2 m
Output indication LED (red)

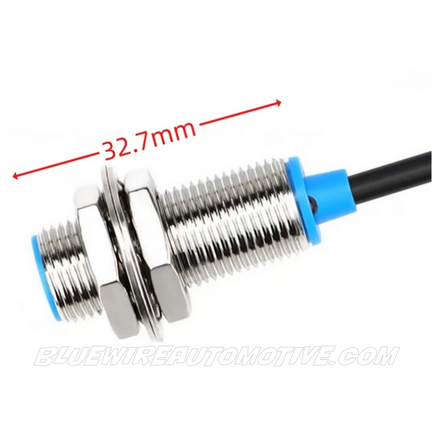

Form Factor Diameter: 12MM thread length: 32MM Overall Length: 37MM

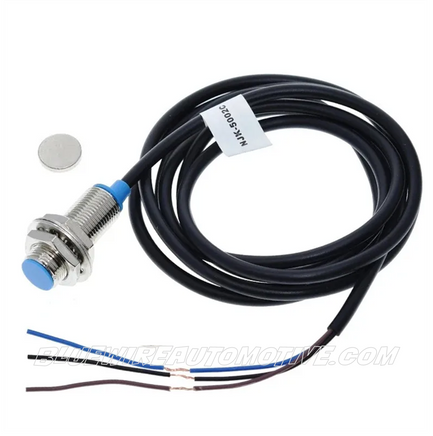

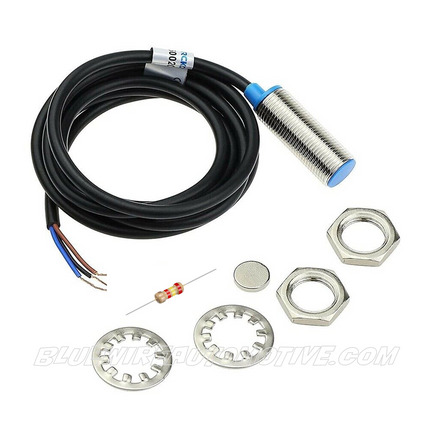

Package Included:
1 X Hall Effect Sensor & Harness
1 x Magnet Sensors
1 x 2.4k Pull Up Resistor


Part No: BWANJK5002C
