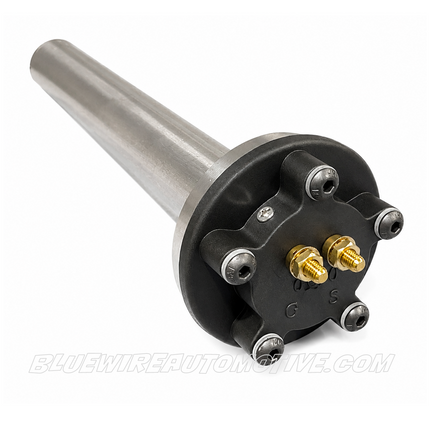

RACEWORKS FUEL LEVEL SENDER-0, to 90,Ohms-BWAALY-080

Fuel Sender Suit Fuel Cell. 0-90 ohm includes gasket, flange and bolts. Ideal for fabrication.

Specifications:
Flange Dimensions: 5 bolt 31.75mm (1.75″) spacing, 54mm (2.1″) PCD
Gasket Dimensions: 66mm OD, 40mm ID
Diameter: 70mm Top OD, 31mm Sender OD
Depth: 255mm
Overall, Height: 285mm

Part Number: BWAALY-080

Also Known As: PFEFCS090, AF85-2010
