Our Red Retro Vintage Dash LED Pilot Light Kit with LED for countless applications including turn signal indicators, toggle switches indicators, fog or running light indicators, etc. Install in dash, overhead console, or wherever the application

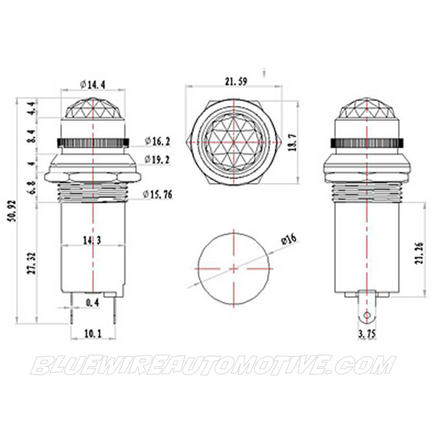

Approx Measurements: Minimum hole diameter needs to be approx: 15mm Length from back of bezel to end is approx: 30mm
(the space/clearance you'll need behind your dash, console, or other location of installation).
Great add-on to your *classic rat rod bomb street hot rod cruiser bomb car or truck, commercial semi big rig, trailer, motor home RV, .
Stainless Steel Nut & Washer
Specification Number of Pins: 2 Lamp Voltage: DC 12VLamp Colour: Red Diameter: 9.2mm/0.36" Thread Diameter: 15.mm/0.61" Hole Size: 15mm
Power Specs: 0.27 watts, 0.02 amps, 13.8V Amperage Rating: 0.02A at 12volt
When fitting your LED alternator warning light make sure you have the correct module below
