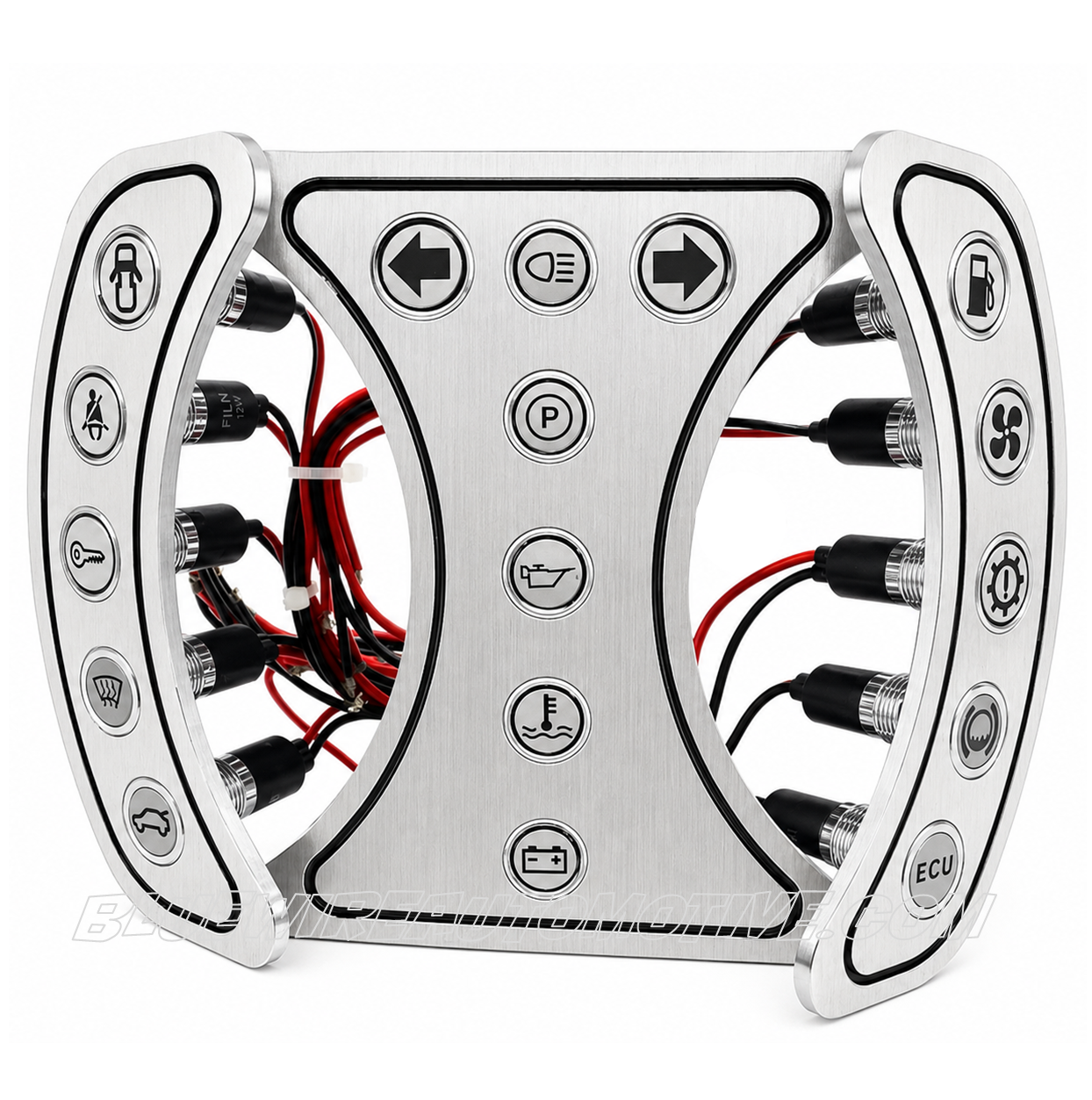

SILVER SERIES X SIGNAL PILOT LIGHT PANEL KIT

Our pilot light X kit was designed to surround 2 5inch gauges with the (X1) panel in the centre with both the (C1) & (C2)  panels each side of the gauge.

This Pilot light Panel is up to 18 x pilot lights counter sunk in a brushed alloy panel ready for installation.

Our silver series signal pilot light panels are used for anticipating signals, emergency signal and other indexing signals in electric power, telecommunications in Custom Hot Rods & Street Machines  etc.


X1 Specification
Logo: Right Arrow Sig (Green Light) 14mm
Logo: High Beam Sig (Blue Light) 12mm
Logo: Left Arrow Sig (Green Light) 14mm
Logo: Hand Brake Sig (Red Light) 12mm
Logo: Oil Low Sig (Red Light) 12mm
Logo: Oil Low Sig (Red Light) 12mm
Logo: Water Temp Sig (Red Light) 12mm
Logo: Battery Sig (Red Light) 12mm

C1 Specification
Logo: Door Sig (Red Light) 14mm
Logo: Seatbelt Sig (Flashing Red Light) 14mm
Logo: Key/Alarm Sig (Flashing Red Light) 14mm
Logo: Windscreen Demister Sig (Amber Light) 14mm
Logo: Boot Open Sig (Red Light) 14mm

C2 Specification
Logo: Fuel Low Sig (Red Light) 14mm
Logo: Fan Sig ( Amber Light) 14mm
Logo: Trans Sig (Red Light) 14mm
Logo: Low Fluid Sig (Red Light) 14mm
Logo: ECU (Amber Light) 14mm

Number of Wires:  36
Wire Length on each Light: 15cm
Lamp Voltage: DC 12V
Lamp Colours: Green, Blue, Red, Amber
Single Light Thread Diameter: 12mm & 14mm
Single Hole Size: 12mm & 14mm
X Plate Size: L 125mm x W 100mm
C1 Plate Size: L 125mm x W 35mm
C2 Plate Size: L 125mm x W 35mm
Thickness: 4mm
Part No: BWAPL-PN-SS-X1C1C2

Easy to install with panel mounting hole in 12mm & 14mm thread diameter.

Or you can build your own with our "You Build It" panels, starting from a blank panel, you just need to add the pilot Lights to fill the holes.
