5 METER RED POSITIVE BATTERY CABLE-RING TERMINALS-00B&S/24v

BLUEWIRE AUTOMOTIVE

$179.00
SKU: BWA00391

Our Bluewire Automotive Heavy Duty Red Race Battery Cable Kit is designed for high-current automotive applications where reliable power delivery is essential.

Rated at an impressive 292 Amps, this heavy-duty positive battery cable is ideal for Street Cars, Race Cars, Trucks, Hot Rods, Motorsport Vehicles and Custom Builds operating on 12V or 24V electrical systems.

The generous 5-metre cable length makes it an excellent choice for battery relocation installations, providing plenty of cable for routing from a rear-mounted battery to the starter motor or main power connection.

A red starter motor protective boot is included to help insulate and protect the high-current terminal while giving the installation a clean, professional finish.

Features

  • Heavy-duty race-spec positive battery cable
  • High 292 Amp current rating
  • Suitable for 12V & 24V systems
  • Generous 5-metre cable length
  • Ideal for battery relocation installations
  • Heavy-duty stranded copper conductor
  • Suitable for high-current starter motor applications
  • Includes heavy-duty ring terminals
  • Includes red starter motor protective boot
  • Ideal for street, race, truck and custom applications

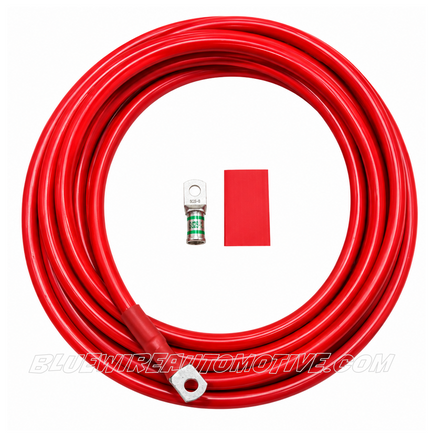

Kit Includes

1 × 5 Metre Red Heavy Duty Battery Cable
2 x Ring Terminals

Battery Cable Specifications

Colour: Red
Application: Positive Battery / Starter Motor Cable
Cable Length: 5 Metres
Current Rating: 292 Amps
Operating Voltage: 12V & 24V
Stranding: 798/0.32
Insulation Thickness: 1.7mm
Copper Conductor Diameter: 14.5mm
Overall Cable Diameter: 16.2mm
Part No: BWA00391

Built for High-Current Applications

With its 798-strand copper conductor and 292 Amp rating, this cable is an excellent choice for demanding automotive electrical installations where a heavier battery cable is required.

Perfect for Race Cars • Street Cars • Trucks • Hot Rods • Muscle Cars • Motorsport Vehicles • Performance Builds • Battery Relocation Systems • Custom Automotive Wiring.

For the best electrical and mechanical connection, always use the correct heavy-duty battery cable crimping tool and ensure all high-current terminals are securely crimped, insulated and protected.
